Fluke 725 Multifunction Process Calibrator Fluke 725 Calibra

description:Fluke 725 Multifunction Process Calibrator Fluke 725 Calibrators...
BASIC INFO
Fluke 725 Multifunction Process Calibrator Fluke 725 Calibrators






Product overview: Fluke 725 Multifunction Process Calibrator Fluke 725 Calibrators

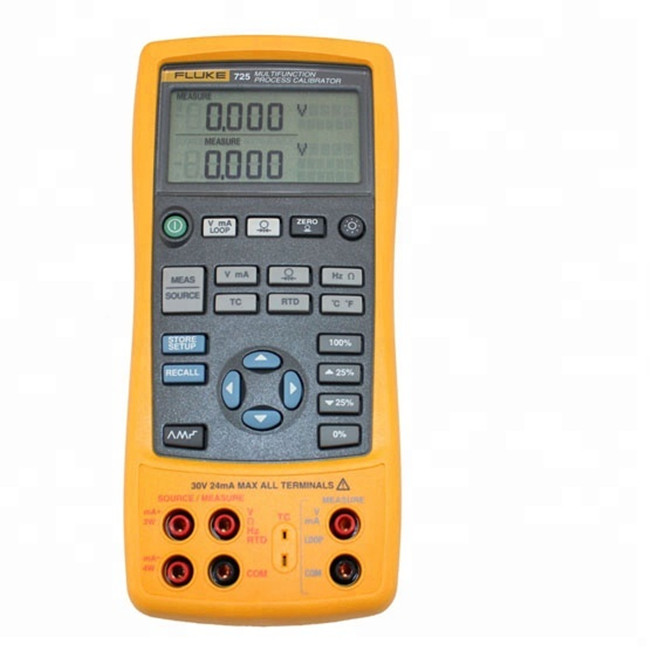

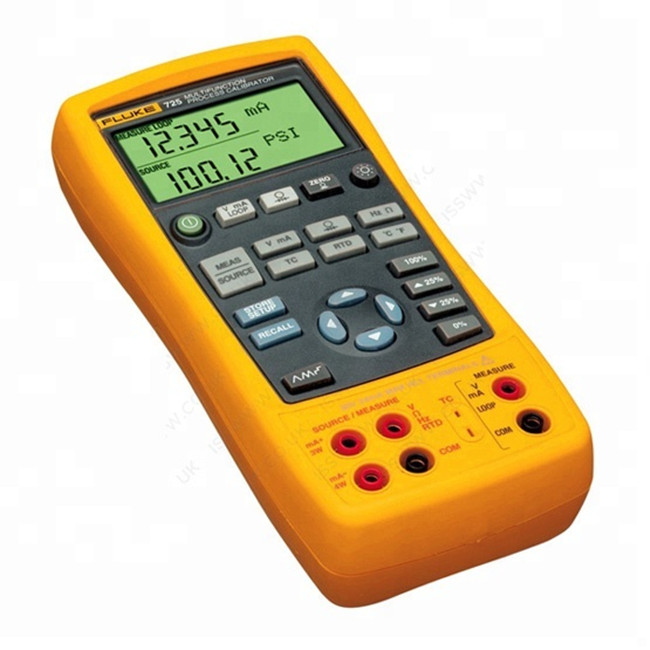

The Fluke 725 Multifunction Process Calibrator is simply powerful!

With the Fluke 725 Multifunction Process Calibrator you can easily source and measure almost any process parameter and test almost any process device. Measure and source mA, volts, temperature (RTDs and thermocouples), frequency, ohms, and pressure, using optional pressure modules.

From the moment you pick it up, the Fluke 725 is ready to perform as a powerful, yet easy-to-use field calibrator. Its simple controls, without menus, make operation easy.


Fluke 725 Multifunction Process Calibrator Fluke 725 Calibrators


Other useful features:

Powers transmitters during test using loop supply with simultaneous mA measurement
Handles fast pulsed RTD transmitters and PLCs, with pulses as short as 10 ms
Provides a backlit display to provide better visibility in poor light
Features small, streamlined shape, and rugged, reliable design that stands up to field use
Sources mA with simultaneous pressure measurement to conduct valve and I/P tests
Supports flow meter testing with frequency and CPM functions
Performs fast linearity tests with auto-step and auto-ramp features
For more precision, pulse sourcing, totalizing and more consider the Fluke 726 Precision Multifunction Calibrator.

If you need an intrinsically-safe rated calibrator, consider the Fluke 725Ex Intrinsically Safe Multifunction Process Calibrator.

For documenting and HART communication built into your calibrator, consider the Fluke 754 Documenting Process Calibrator with HART.


Key features of Fluke 725 Multifunction Process Calibrator Fluke 725 Calibrators

Powerful, easy-to-use field calibrator
Measures volts, mA, pressure, RTDs, thermocouples, frequency, and ohms to test sensors and transmitters
Sources/simulates volts dc, mA, thermocouples , RTDs, frequency, ohms, and pressure to calibrate transmitters
Measures/sources pressure using any of 50 Fluke 750P Pressure Modules
Easy to read measure/source screen displays input and output simultaneously


Specifications of Fluke 725 Multifunction Process Calibrator Fluke 725 Calibrators



  • More precise measurement and calibration source performance, accuracies of 0.01%.
  • Two separate channels; measure, source and view process signals simultaneously
  • Measure volts, mA, RTDs, thermocouples, frequency, and resistance to test sensors and transmitters
  • Source/simulate volts, mA, thermocouples, RTDs, frequency, and pressure to calibrate transmitters
  • Measure or source pressure* using any of 29 Fluke 700Pxx Pressure Modules
  • Source mA with simultaneous pressure measurement to conduct valve and I/P tests
  • Integrated pressure switch test allows you to capture the set, reset and deadband of a switch
  • Memory storage for up to 8 calibration results, return stored calibration data from the field for later analysis
  • Transmitter error% calculation, interpret calibration results without a calculator
  • Perform fast linearity tests with auto step and auto ramp features
  • Power transmitters during test using 24 V loop supply and simultaneous mA measurement
  • Store frequently-used test setups for later use
  • Frequency totalizer and frequency pulse train source mode for enhanced flowmeter testing
  • HART mode inserts 250 ohm resistor in mA measure and source for compatibility with HART instrumentation
  • Custom RTD curves, add calibration constants for certified RTD probes for enhanced temperature measurement.
  • New voltage input protection design for improved reliability
  • Three-year warranty

Measurement Accuracy of Fluke 725 Multifunction Process Calibrator Fluke 725 Calibrators


Voltage DC

30.000 V

0.01%+ 2 mV (upper display)

20.000 V

0.01%+ 2 mV (lower display)

90.00 mV

0.01%+ 10μV

-10.00 mV to 75.00 mV

0.025 % + 1 count (via TC connector)

Current DC

24.000 mA

0.01%+ 2 mA

Resistance

0.0 to 4000.0 Ω

+/- 0.015%

Frequency

2.0 to 1000.0 CPM

0.05 % + 0.1 cpm

1.0 to 1000.0 Hz

0.05 % + 0.1 Hz

1.00 to 15.00 kHz

0.05 % + 0.01 kHz

Sensitivity

1 V peak-to-peak-minimum

Pressure

Accuracy

from 0.025% of range using any of 29 pressure modules.



(for detailed specifications refer to pressure modules in options and accessories)



Modules available for differential, gauge, vacuum, absolute, dual and high pressure.
