• Range of ATEX Certified intrinsically safe surge protectors

• Ultra-slim space-saving design; easy installation

• Multistage hybrid protection circuitry – 20kA maximum surge current

• Range of voltage ratings – to suit all process I/O applications

• High bandwidth, low resistance, RTD, PSTN and 3-wire transmitter versions available

• 10 year product warranty





MTL SD32X Surge Protectors SD32X Surge Technologies Line Protectors Arrived



Ultra-slim user-friendly devices for protecting electronic equipment and systems against surges on signal and I/O cabling.



The MTL SD range is a series of surge protection devices combining unparalleled packing densities, application versatility, proven reliable hybrid circuitry, simple installation and optional ‘loop disconnect’ facilities – features which make the range the ultimate surge protection solution for process equipment, I/O systems and communications networks. The exceptionally high packing densities are the consequence of an ultra slim ‘footprint’ for individual modules which can thus ‘double-up’  as feedback terminals. Each module provides full hybrid surge protection for 2 and 3 wire loop protection.





MTL SD32X Surge Protectors SD32X Surge Technologies Line Protectors Arrived



SDX units, available in 7V, 16V, 32V and 55V versions (SD07X, SD16X, SD32X and SD55X respectively) are suitable for a wide range of applications including THCs, 4-20mA loops, shut-down systems and fire and gas detectors.



MTL SD of MTL SD32X Surge Protectors SD32X Surge Technologies Line Protectors Arrived



In addition to the many beneficial features offered by SDX devices, the SD variants fuse/disconnect package provides both fused protection against fault currents and a convenient method of isolating field circuitry from protected circuitry without needing additional disconnect terminals. Also provided is a third connection on the field and safe side of the protector in order to terminate screens safely to earth.





MTL SDR of MTL SD32X Surge Protectors SD32X Surge Technologies Line Protectors Arrived



The MTL SDR range has been specially designed to meet the requirements for high speed data links with an extremely high bandwidth. SDR units are available in a range of voltage variants enabling a wide range of communication systems to be protected e.g. RS232, RS422, RS485, Bus powered systems etc. These devices are classed as simple apparatus and can therefore be used in hazardous areas without affecting the certification of the circuit.





MTL SD32X Surge Protectors SD32X Surge Technologies Line Protectors Arrived



This range of SD surge protectors offer excellent levels of protection over all three wires in conjunction with minimal footprint requirements. This is the most compact 3-wire surge protector on the market.



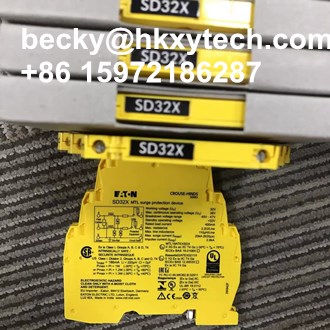

SD32T3 is a three terminal SPD for 3-wire transmitters or sensors

SDRTD is designed specifically for Resistance Temperature Detectors

SDR3 is a three terminal SPD for high bandwidth applications





Specification of MTL SD32X Surge Protectors SD32X Surge Technologies Line Protectors Arrived



Physical of MTL SD32X Surge Protectors SD32X Surge Technologies Line Protectors Arrived



Mount DIN Rail





Technical of MTL SD32X Surge Protectors SD32X Surge Technologies Line Protectors Arrived



Clamping Voltage 32 V

Leakage Current 5 µA

Max Forward Surge Current (Ifsm) 400 mA

Max Operating Temperature 75 °C

Max Surge Current 10 kA

Min Operating Temperature -30 °C

Output Current 400 mA

Resistance 2.2 Ω

Response Time 10 ns

Voltage Rating 32 V

Voltage Rating (DC) 32 V





Ordering Models of MTL SD32X Surge Protectors SD32X Surge Technologies Line Protectors Arrived


SD07 SD16 SD32 SD55 SD07R SD16R SD32R SD55R SD07X SD16X SD32X SD55X SD32T3 SD07R3 SD16R3 SD32R3 SD55R3 SDRTD SDPSTN SD150X SD275X



SD07 SD16 SD32 SD55 SD07X SD16X SD32X SD55X SD150X SD275X SD07R SD16R SD32R SD55R SD07R3 SD16R3 SD32R3 SD55R3 SDRTD SD32T3 SDPSTN SLP07D SLP16D SLP32D MA15/D/1/SI MA15/D/2/SI MA15/D/1TT/SI MA15/D/2TT/L MA30/D/1/SI MA30/D/2/SI MA30/D/3/SI MA05/D/1 MA05/D/2 MA10/D/1 MA10/D/2 MA05/SC/1 MA05/SC/2 MA10/SC/1 MA10/SC/2 MA05/I/1 MA05/I/2 MA10/I/1 MA10/I/2
