Yokogawa AAV142-S50/K4A00 AAV142-S53/A4S00 DCS Arrived
Yokogawa AAV142-S50/K4A00 AAV142-S53/A4S00 DCS Arrived
Model and Suffix Codes of AAV141
|
Description |
||
|
Model |
AAV142 |
Analog Input Module (-10 to +10 V, 16-channel, Non-Isolated) |
|
Suffix Codes |
-S |
Standard type |
|
5 |
With no explosion protection |
|
|
E |
With explosion protection |
|
|
0 |
Basic type |
|
|
3 |
With ISA Standard G3 option and temperature (-20 to 70 °C) option |
|
|
Option Codes |
/K4A00 |
With KS Cable Interface Adapter [Model: ATK4A-00] |
|
/A4S00 |
With Pressure Clamp Terminal Block for Analog [Model: ATA4S-00] |
|
|
/A4S10 |
With Pressure Clamp Terminal Block for Analog (surge absorber) [Model: ATA4S-10] |
|
|
/A4D00 |
With Dual Pressure Clamp Terminal Block for Analog [Model: ATA4D-00] |
|
|
/A4D10 |
With Dual Pressure Clamp Terminal Block for Analog (surge absorber) [Model: ATA4D-10] |
|
|
/CCC01 |
With Connector Cover for MIL Cable [Model: ACCC01] |

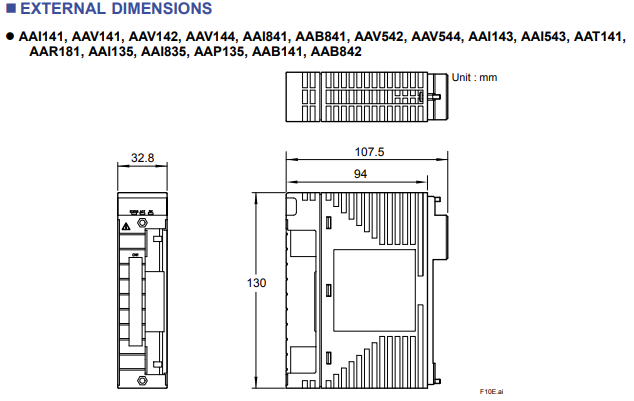

External Dimensions of AAV141
n STANDARD SPECIFICATIONS
l Current/Voltage Input Modules (Non-Isolated)
These modules provide 16 inputs of mainly 4 to 20 mA DC or 1 to 5 V DC standardized signals from 2-wire/4-wire transmitters.
They can be used in dual-redundant configuration.
|
Items |
Specifications |
||||
|
Model |
AAI141 (*1) |
AAV141 |
AAV142 |
AAB141(*1) (*4) |
|
|
Number of input channels |
16, non-isolated |
16, non-isolated (differential input) |
16, non-isolated |
16, non-isolated When the voltage input is selected the differential input is applied. |
|
|
Input signal |
4 to 20 mADC |
1 to 5 V DC (allowable common mode voltage ± 1 V or less) |
-10 to 10 V DC |
Voltage input : 1to 5 V DC (allowable common mode voltage ±1 V or less) Current input : 4 to 20 mADC(*5) |
|
|
Allowable input current/voltage |
27 mA |
±7.5 V |
±13 V |
Voltage input : ±7.5 V Current input : 25 mA |
|
|
Withstanding voltage |
— |
||||
|
Input resistance |
Power ON |
400 Ω (at 20 mA) to 1000 Ω (at 4 mA) (*2) |
1 MΩ or larger |
1 MΩ or larger |
Voltage input : 1 MΩ or larger Current input : 290 Ω (at 20 mA) to 450 Ω (at 4 mA) (*6) |
|
Power OFF |
500 kΩ or larger |
340 kΩ or larger |
660 kΩ or larger |
Voltage input : 340 kΩ or larger Current input : 500 kΩ or larger |
|
|
Accuracy |
±16 µA |
±4 mV |
±20 mV |
Voltage input : ±4 mV Current input : ±16 μA |
|
|
Data update period |
10 ms |
||||
|
Step response time |
100 ms |
||||
|
Transmitter power supply |
14.8 V or higher (at 20 mA) (*3) 26.4 V or less (at 0 mA) (output current limit: 27 mA) |
— |
|||
|
Setting of 2-wire or 4-wire transmitter |
For each channel by setting pin |
— |
|||
|
Drift due to ambient temperature change |
±16 µA/10 °C |
±4 mV/10 °C |
±20 mV/10 °C |
±0.1 %/10 °C |
|
|
Maximum current consumption |
310 mA (5 V DC), 450 mA (24 V DC) |
350 mA (5 V DC) |
350 mA (5 V DC) |
480 mA (5 V DC), 120 mA (24 V DC) |
|
|
Weight |
0.2 kg |
0.2 kg |
0.2 kg |
0.3 kg |
|
|
External connection |
Pressure clamp terminal, KS cable, MIL connector cable |
KS cable |
|||
|
HART communication (*7) |
Available |
— |
— |
Available (at current input) |
|
