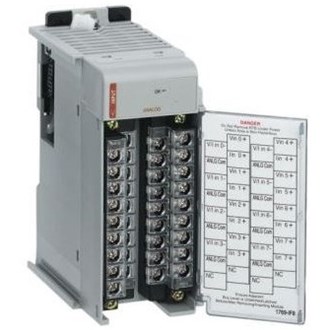

Allen Bradley 1769-IF8 CompactLogix Analog Input Module 1769-IF8 I/O Analog Module
Description of Allen Bradley 1769-IF8 CompactLogix Analog Input Module 1769-IF8 I/O Analog Module
The 1769 Compact I/O modules can be used with a CompactLogix controller,as well as for expansion I/O in a MicroLogix 1500 controller assembly or in an assembly with a 1769-ADN DeviceNet adapter module. Unless connected to a MicroLogix 1500 base, each bank of I/O modules must include its own power supply.
Install the I/O modules on a panel with two mounting screws or on a DIN rail. The modules mechanically lock together by means of a tongue-and-groove design and have an integrated communication bus that is connected from module to module by a moveable bus connector.
Technical Specifications of Allen Bradley 1769-IF8 CompactLogix Analog Input Module 1769-IF8 I/O Analog Module
Manufacturer: Rockwell Automation
Brand: Allen-Bradley
Part Number: 1769-IF8
Product Family: CompactLogix
Product Type Analog Input Module
No. of Inputs: 8 Differential and Single Ended Inputs
Power Supply Distance rating: 8
Input current range: 0-21 mA
Current signal normal ranges: 0-20mA; 4-20 mA
Current signal full range: 0-21 mA; 3.2 - 21 mA.
Input voltage range: 0-10.5VDC
Voltage signal normal ranges: ±10V DC, 0 …10V DC, 0…5V DC, 1…5V DC
Voltage signal full range: ±10.5V DC, -0.5…10.5V DC, -0.5…5.25V DC, 0.5…5.25V DC
Resolution: 16 bits (unipolar) 15 bits plus sign (bipolar)
Rated working voltage: 30VAC; 30VDC
Related models of Allen Bradley 1769-IF8 CompactLogix Analog Input Module 1769-IF8 I/O Analog Module
1769-IA8I
1769-IA16
1769-IM12
1769-OA8
1769-OA16
1769-IG16
1769-IQ16
1769-IQ16F
1769-IQ32
1769-IQ32T
1769-IQ6XOW4
1769-OB8
1769-OB16
1769-OB16P
1769-OB32
1769-OB32T
1769-OG16
1769-OV16
1769-OV32T
1769-OW8
1769-OW8I
1769-OW16
1769-IF4
1769-IF4I
1769-IF4XOF2
1769-IF4FXOF2F
1769-IF8
1769-IF16C
1769-IF16V
1769-IR6
1769-IT6
1769-OF2
1769-OF4
1769-OF4CI
1769-OF4VI
1769-OF8C
1769-OF8V
1769-ARM
1769-ASCII
1769-BOOLEAN
1769-HSC
About the 1769-IF8 of Allen Bradley 1769-IF8 CompactLogix Analog Input Module 1769-IF8 I/O Analog Module
The 1769-IF8 is used with Allen Bradley’s MicroLogix 1500 and 1769 CompactLogix family of controllers. This module has Eight (8) input channels, each configurable to receive current and voltage signals. Configurable current signals are 0-20 mA and 4-20mA with full ranges of 0-21 mA and 3.2 - 21 mA. Configurable voltage signals available are +/10VDC, 1-5VDC, 0-5VDC, 0-10VDC with full ranges of +/- 10.5 VDC, 0.5 - 5.25 VDC, -0.5 - +5.25VDC, -0.5 - +10.5VDC respectively. The module can also be used with a MicroLogix 1500 controller as long as the module is installed on a 1769 CompactLogix I/O bank. The Analog module has an Analog to Digital (ADC) circuit that converts the analog data to store digitally and made available for any compatible Logix processor. The data processed can be configured in the programming software as engineering units, scaled for PID, percent range and raw data. Configure the 1769-IF8 with RSLogix 500, RSLogix5000 or Studio 5000 programming software. Individual channel configuration can be performed such as selection of input signal type, setting of process alarms, input filters, real time sampling, time stamping, alarm deadband and other parameters. The module can detect an open circuit that is automatically activated once a channel is activated. The power supply distance rating of 1769-IF8 is 8 modules. This means the module cannot be installed more than 8 modules away from the power supply. There is no limit to the number of modules that can be used as long as the distance rating is observed. The module can be inserted to any adjacent I/O module including the controller in the chassis.
Related models of Allen Bradley 1769-IF8 CompactLogix Analog Input Module 1769-IF8 I/O Analog Module
1769-IF8A 1769-IF8B 1769-IF8C 1769-IF8D 1769-IF8E 1769-IF8F 1769-IF8G 1769-IF8H 1769-IF8I 1769-IF8J 1769-IF8K 1769-IF8L 1769-IF8M 1769-IF8N 1769-IF8O 1769-IF8P 1769-IF8Q 1769-IF8R 1769-IF8S 1769-IF8T 1769-IF8U 1769-IF8V 1769-IF8W 1769-IF8X 1769-IF8Y 1769-IF8Z
Ordering Codes of Allen Bradley 1769-IF8 CompactLogix Analog Input Module 1769-IF8 I/O Analog Module
1769 CompactLogix Controllers of Allen Bradley 1769-IF8 CompactLogix Analog Input Module 1769-IF8 I/O Analog Module
Catalog Numbers 1769-L31, 1769-L32C, 1769-L32E, 1769-L35CR, 1769-L35E
CompactLogix Controllers Specifications of Allen Bradley 1769-IF8 CompactLogix Analog Input Module 1769-IF8 I/O Analog Module
CompactLogix 5370 Controller Catalog Numbers
1769-L16ER-BB1B, 1769-L18ER-BB1B, 1769-L18ERM-BB1B, 1769-L19ER-BB1B,1769-L24ER-QB1B, 1769-L24ER-QBFC1B, 1769-L24ER-QBFC1BK, 1769-L27ERMQBFC1B,1769-L30ER, 1769-L30ER-NSE, 1769-L30ERM, 1769-L30ERMK, 1769-L30ERMS, 1769-L33ER, 1769-L33ERM, 1769-L33ERMK, 1769-L33ERMS,1769-L33ERMSK, 1769-L36ERM, 1769-L36ERMS, 1769-L37ERM, 1769-L37ERMK,1769-L37ERMS, 1769-L37ERMSK, 1769-L38ERM, 1769-L38ERMK, 1769-L38ERMS,1769-L38ERMSK
Allen Bradley 1769-IF8 CompactLogix Analog Input Module 1769-IF8 I/O Analog Module
Armor CompactLogix and Armor Compact GuardLogix
Controller Catalog Numbers of Allen Bradley 1769-IF8 CompactLogix Analog Input Module 1769-IF8 I/O Analog Module
1769-L33ERMO, 1769-L33ERMOS, 1769-L36ERMO, 1769-L36ERMOS, 1769-L37ERMO,
1769-L37ERMOS,1769-L38ERMO, 1769-L38ERMOS
1769 Packaged Controller Catalog Numbers of Allen Bradley 1769-IF8 CompactLogix Analog Input Module 1769-IF8 I/O Analog Module
1769-L23-QBFC1B, 1769-L23E-QB1B, 1769-L23E-QBFC1B
1769 Modular Controller Catalog Numbers of Allen Bradley 1769-IF8 CompactLogix Analog Input Module 1769-IF8 I/O Analog Module
1769-L31, 1769-L32C, 1769-L35CR, 1769-L32E, 1769-L32EK, 1769-L35E
1768 Controller Catalog Numbers of Allen Bradley 1769-IF8 CompactLogix Analog Input Module 1769-IF8 I/O Analog Module
1768-L43, 1768-L43S, 1768-L45, 1768-L45S
Memory Card Catalog Numbers of Allen Bradley 1769-IF8 CompactLogix Analog Input Module 1769-IF8 I/O Analog Module
1784-CF128, 1784-SD1, 1784-SD2
