MTL4531 Safety Barries MTL4531 Vibration Transducer Interface
Description of MTL4531 Safety Barries MTL4531 Vibration Transducer Interface
MTL4531 repeats a signal from a vibration sensor in a hazardous area, providing an output for a monitoring system in the safe area. The interface is compatible with 3-wire eddy-current probes and accelerometers or 2-wire current sensors; the selection is made by a switch on the side of the module.
SPECIFICATION of MTL4531 Safety Barries MTL4531 Vibration Transducer Interface
See also common specification
Number of channels
One
Sensor type
2- or 3-wire vibration transducer
Location of signal source
Zone 0, IIC, T4–6 hazardous area if suitably certified
Div. 1, Group A hazardous location
Hazardous-area input
Input impedance
(terminals 2 & 3): 10kΩ

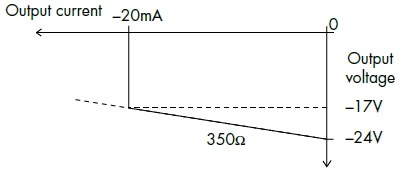

Transducer supply voltage, 3-wire (terminals 3 & 1)
Transducer supply current, 2-wire
3.3mA (nom.) for 2-wire sensors, user selectable by switch
Signal range
Minimum –20V, maximum –0.5V
DC transfer accuracy at 20°C
<±50mV
AC transfer accuracy at 20°C
0Hz to 1kHz: ±1%
1kHz to 10kHz: –5% to +1%
10kHz to 20kHz: –10% to +1%
Temperature coefficient
±50ppm/°C (10 to 65°C)
±100ppm/°C (–20 to 10°C)
Voltage bandwidth
–3dB at 47kHz (typical)
Phase response
<14μs, equivalent to:
–1° at 200Hz
–3° at 600Hz
–5° at 1kHz
–50° at 10kHz
–100° at 20kHz
Safe-area output impedance
<20Ω
MTL4531 Safety Barries MTL4531 Vibration Transducer Interface
Improving upon the widely adopted, enormously successful, "industry standard" MTL4000 Series was a big challenge but the innovative MTL4500 Series includes several new features for backplane mounting isolating interfaces. This new family easily integrates with the I/O equipment of all major instrumentation and DCS suppliers in the same secure manner as its predecessor.
►Rapid install-and-release mechanism
►Highest packing density on the market
►Single and multi-channel I/O modules
►3-port isolation with low power dissipation
►Compatible with MTL4000
PRODUCT LITERATURE of MTL4531 Safety Barries MTL4531 Vibration Transducer Interface
| Product Code | Description |
|---|---|
 Symbol denotes that the equipment is suitable for use in hazardous area applications. Symbol denotes that the product has been assessed for functional safety applications. |
|
|
SM45-55-AI |
FSM Safety Manual - Analogue Input Modules |
|
SM45-55-AO |
FSM Safety Manual - Analogue Output Modules |
|
SM45-55-BI |
FSM Safety Manual - Binary Input Modules |
|
SM45-55-MMI |
FSM Safety Manual - Machine Monitor Interfaces |
|
SM45-55-SAD |
FSM Safety Manual - Solenoid / Alarm Driver Modules |
| 1. Intro of MTL4531 Safety Barries MTL4531 Vibration Transducer Interface | |
| INA4500 | MTL4500/4600 range Instructions for Safe Use |
| INM4500/4600 | MTL4500/4600 range Instruction Manual |
| MTL4500-5500-ACC | Backplanes, Enclosures & Accessories |
| MTL4500-5500-CS | Common Specifications |
| MTL4500-5500-DS | MTL4500-5500 range Data Set |
| 2. Digital Input of MTL4531 Safety Barries MTL4531 Vibration Transducer Interface | |
|
MTL4501-SR |
1ch DI failsafe solid-state output + LFD alarm |
|
MTL4504 |
1ch DI relay output + LFD alarm + phase reversal |
|
MTL4510 |
4ch DI solid-state output |
|
MTL4510B |
4ch DI multifunction solid-state output |
|
MTL4511 |
1ch DI relay output |
|
MTL4513 |
2ch DI solid-state output |
|
MTL4514D |
1ch switch/prox input, dual output relay |
|
MTL4514_B |
1ch DI relay output + LFD alarm |
|
MTL4516 |
2ch DI relay output |
|
MTL4516C |
2ch DI with changeover relay output |
|
MTL4517 |
2ch DI relay output + LFD alarm |
| 3. Digital Output of MTL4531 Safety Barries MTL4531 Vibration Transducer Interface | |
|
MTL4521 |
Loop powered solenoid driver |
|
MTL4521L |
loop powered solenoid driver IIC |
|
MTL4523 |
Solenoid driver with LFD |
|
MTL4523L |
Loop powered solenoid driver + LFD |
|
MTL4523R |
Solenoid driver with LFD |
|
MTL4523V-VL |
Solenoid/Alarm driver with voltage control |
|
MTL4524 |
Switch operated solenoid driver |
|
MTL4524S |
Switch operated solenoid driver, 24V override |
|
MTL4525 |
Switch operated solenoid driver low power |
|
MTL4526 |
2ch switch operated relay |
| 4. Analogue Input of MTL4531 Safety Barries MTL4531 Vibration Transducer Interface | |
|
MTL4541 |
1ch 2/3 wire Transmitter repeater |
|
MTL4541A |
1ch Transmitter repeater, passive input |
|
MTL4541AS |
1ch Transmitter repeater, passive input, current sink |
|
MTL4541B |
MTL4041B replacement |
|
MTL4541P |
MTL4041P replacement |
|
MTL4541S |
1ch 2/3 wire Transmitter repeater, current sink |
|
MTL4541T |
2/3 wire Transmitter repeater |
|
MTL4544 |
2ch 2/3 wire Transmitter repeater |
|
MTL4544A |
2ch Transmitter repeater, passive input |
|
MTL4544AS |
2ch Transmitter repeater, passive input, current sink |
|
MTL4544B |
MTL4044 replacement |
|
MTL4544D |
2/3 wire transmitter repeater, dual output |
|
MTL4544S |
2ch 2/3 transmitter repeater, current sink |
| 5. Analogue Output of MTL4531 Safety Barries MTL4531 Vibration Transducer Interface | |
|
MTL4546 |
1ch 4-20mA smart isolating driver + LFD |
|
MTL4546C |
1ch 4-20mA smart isolating driver + oc LFD |
|
MTL4546S |
1ch 4-20mA HART isolating driver + LFD |
|
MTL4546Y |
1ch 4-20mA smart isolating driver + oc LFD |
|
MTL4549 |
2ch 4-20mA smart isolating driver + LFD |
|
MTL4549C |
2ch 4-20mA smart isolating driver + oc LFD |
|
MTL4549Y |
2ch 4-20mA smart isolating driver + oc LFD |
| 6. Temperature Input of MTL4531 Safety Barries MTL4531 Vibration Transducer Interface | |
|
MTL4573 |
1ch Temperature converter, RTD / THC |
|
MTL4575 |
1ch Temperature converter, RTD / THC with alarm |
|
MTL4576-RTD |
2ch Temperature converter, RTD |
|
MTL4576-THC |
2ch Temperature converter, THC |
|
MTL4581 |
1ch mV/THC isolator for low-level signals |
|
MTL4582B |
1ch resistance isolator to repeat RTD signals |
| 7. Pulse and Vibration of MTL4531 Safety Barries MTL4531 Vibration Transducer Interface | |
|
MTL4531 |
1ch vibration probe interface |
|
MTL4532 |
1ch pulse isolator, digital or analogue output |
| 8. Fire and Smoke of MTL4531 Safety Barries MTL4531 Vibration Transducer Interface | |
|
MTL4561 |
2ch loop-powered, for fire and smoke detectors |
| 9. General of MTL4531 Safety Barries MTL4531 Vibration Transducer Interface | |
| MTL4599 | Dummy isolator |
| MTL4599N | General purpose feed-through module |
MTL4531 Safety Barries MTL4531 Vibration Transducer Interface
| MTL5000 | Function | MTL5500 | Notes |
| MTL5011B | 1ch, changeover relay output | MTL5511 | |
| MTL5012 | 1ch, solid-state output | Use 1ch of MTL5513 | |
| MTL5012S | 1ch, solid-state output, UE1 special | No replacement | |
| MTL5014 | 1ch, c/o relay output, LFD relay | MTL5514/14D |
MTL5514 does not provide 1in 2out function. MTL5514D with 1in 2out available Q1 2014 |
| MTL5015 | 2ch, solid-state output | MTL5513 |
Common connection on haz side, max frequency response 500Hz |
| MTL5016 | 2ch, n/o relay output | MTL5516C | |
| MTL5017 | 2ch, n/o relay output, LFD relay | MTL5517 | LFD relay energises on alarm |
| MTL5018 | 2ch, changeover relay output | MTL5516C | Common connection on haz side |
| MTL5018ac | 2ch, changeover relay output, ac power |
Continues as MTL5018ac. Alternative option: MTL5516C fitted with MPA5500 ac adaptor |
|
| MTL5021 | Loop powered, IIC, (12.85V, 45mA, cl 45mA) | MTL5521 | (12.8V, 48mA, cl 48mA) |
| MTL5022 | Loop powered, IIB, (12.9V, 60mA, cl 60mA) | MTL5522 | (9.9V, 70mA, cl 70mA) |
| MTL5023 | Logic ctrl, lfd, phase,(12.85V, 45mA, cl 45mA) | MTL5523 | (12.8V, 48mA, cl 48mA) |
| MTL5024 | Logic ctrl, phase, (12.85V, 45mA, cl 45mA) | MTL5524 | (12.8V, 48mA, cl 48mA) |
| MTL5025 | Loop powered, IIC, (8.6V, 45mA, cl 45mA) | MTL5525 | (7V, 48mA, cl 48mA), lower Io |
| MTL5031 | Vibration transducer interface | MTL5531 | Now Velomitor compatible |
| MTL5032 | Pulse isolator | MTL5532 | Now with 4-20mA output and alarm |
| MTL5040 | Loop isolator | Use MTL5541 and MTL5546Y | |
| MTL5041 | For 2-wire transmitters | MTL5541 | |
| MTL5042 | For 2- or 3-wire txs, smart | MTL5541 | |
| MTL5043 | Dual output for 2-wire smart txs | MTL5544D | No current sink o/p. Passive Tx input |
| MTL5044 | Two channel for 2-wire txs | MTL5544 | Now with passive Tx inputs |
| MTL5045 | Isolating driver | MTL5546Y | Smart only versions |
| MTL5046 | Smart isolating driver with LFD | MTL5546 | |
| MTL5049 | Two channel isolating driver | MTL5549Y | Smart only versions |
| MTL5051 | Serial-data comms isolator | Continues as MTL5051 model | |
| MTL5053 | Fieldbus isolator/power supply | Discontinued | |
| MTL5061 | Fire/smoke detector interface | MTL5561 | |
| MTL5073 | Temperature converter | MTL5575 | Now with trip alarm |
| MTL5074 | Temperature converter | MTL5575 | Now with trip alarm |
| MTL5081 | mV/THC isolator | MTL5581 | |
| MTL5082 | Resistance isolator | MTL5582 | |
| MTL5113P | Failsafe sw/prox interface | MTL5501-SR | |
| MTL5314 | Trip amplifier | Continues as MTL5314 model | |
| MTL5344 | Repeater power supply | Discontinued | |
| MTL5349 | Isolating driver | Discontinued | |
| MTL5991 | 24V power supply | Continues as MTL5991 model | |
| MTL5995 | Fieldbus power supply | Convert to F10X range product |
MTL4500 Series Barriers MTL4531 Safety Barries MTL4531 Vibration Transducer Interface
MTL4501-SR, MTL4504, MTL4510, MTL4510B, MTL4511, MTL4513, MTL4514 (B)(D), MTL4516, MTL4516C, MTL4517, MTL4521, MTL4521L, MTL4523, MTL4523L, MTL4523R, MTL4523V, MTL4523VL, MTL4524, MTL4524S, MTL4525, MTL4526, MTL4531, MTL4532, MTL4533, MTL4541, MTL4541A, MTL4541AS, MTL4541B, MTL4541P, MTL4541S, MTL4541T, MTL4544, MTL4544A, MTL4544AS, MTL4544B, MTL4544D, MTL4544S, MTL4546, MTL4546C, MTL4546S, MTL4546Y, MTL4549, MTL4549C, MTL4549Y, MTL4561, MTL4575, MTL4576-RTD, MTL4576-THC, MTL4581
