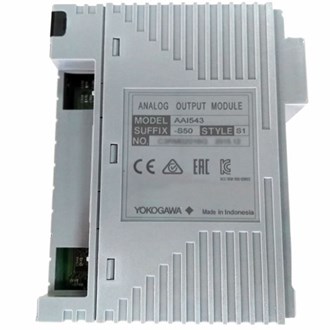

Yokogawa AAI543-S50 AAI543-S53 AAI543-H50 AAI543-H53 Analog Output Modules
GENERAL of Yokogawa AAI543-S50 AAI543-S53 AAI543-H50 AAI543-H53 Analog Output Modules
This document describes about hardware specifications of Analog I/O Modules (for FIO) to be installed in the ESB bus node units (ANB10S and ANB10D), Optical ESB bus node units (ANB11S and ANB11D), and field control units(for FIO) (AFV30S, AFV30D, AFV40S, AFV40D, AFV10S, AFV10D).
These analog I/O modules function as signal converters; by inputting field analog signals into these modules,it converts them to internal data for field control stations (FCS), or the FCS’s internal data to analog signals for outputs.
| S/N | Main Characters | Description |
| 1 | Number of input channels | 16, isolated |
| 2 | Output signal | 4 to 20 mA |
| 3 | Withstanding voltage | Between input and system: 1500 V AC, for 1 minute |
| 4 | Circuit-open detection | Less than 0.65 mA |
| 5 | Data update period | 10 ms |
| 6 | Drift due to ambient temperature change | ±16 μA per 10 ˚C |
| 7 | Maximum current consumption | 230 mA (5 V DC), 540 mA (24 V DC) |
| 10 | External connection | Pressure clamp terminal, MIL connector cable, dedicated cable (KS1) |
| 11 | HART communication | Available |
Model Selection of Yokogawa AAI543-S50 AAI543-S53 AAI543-H50 AAI543-H53 Analog Output Modules
| Model | Suffix Codes | Description | |||
| AAI543 | Analog Output Module (4 to 20 mA, 16-channel, Isolated) | ||||
| -S | Standard type | ||||
| -H | With digital communication (HART protocol) | ||||
| 5 | Standard switch-over response in redundant configuration with no explosion protection | ||||
| 6 | Fast switch-over response in redundant configuration with no explosion protection | ||||
| E | Standard switch-over response in redundant configuration with explosion protection | ||||
| F | Fast switch-over response in redundant configuration with explosion protection | ||||
| 0 | Basic type | ||||
| 1 | With ISA Standard G3 option | ||||
| 3 | With ISA Standard G3 option and temperature (-20 to 70 °C) option | ||||
| Option Code | /K4A00 | With KS Cable Interface Adapter (For connecting AEA4D Terminal Board) [Model: ATK4A-00] | |||
| /A4S00 | With Pressure Clamp Terminal Block [Model: ATA4S-00] | ||||
| /A4S10 | With Pressure Clamp Terminal Block (surge absorber) [Model: ATA4S-10] | ||||
| /A4D00 | With Dual Pressure Clamp Terminal Block [Model: ATA4D-00] | ||||
| /A4D10 | With Dual Pressure Clamp Terminal Block (surge absorber) [Model: ATA4D-10] | ||||
| /CCC01 | With Connector Cover for MIL Cable [Model: ACCC01] | ||||
Typical Order Codes of Yokogawa AAI543-S50 AAI543-S53 AAI543-H50 AAI543-H53 Analog Output Modules
| S.N. | Typical order codes | Remarks |
| 1 | AAI543-S50 | Standard type |
| 2 | AAI543-S53 | Standard type with ISA G3 and wide temperature (-20 to 70 °C) |
| 3 | AAI543-H50 | Hart type |
| 4 | AAI543-H53 | Hart type with ISA G3 and wide temperature (-20 to 70 °C) |
| 5 | AAI543-S50/K4A00 | Standard type with ATK4A terminal block |
| 6 | AAI543-S53/K4A00 | Standard type with ISA G3 and wide temperature (-20 to 70 °C) with terminal block |
| 7 | AAI543-H50/K4A00 | Hart type with ATK4A terminal block |
| 8 | AAI543-H53/K4A00 | Hart type with ISA G3 and wied temperature (-20 to 70 °C) with terminal block |
Hardware Requirements Yokogawa AAI543-S50 AAI543-S53 AAI543-H50 AAI543-H53 Analog Output Modules
The analog I/O modules run on the following FCS.
AFV30S, AFV30D, AFV40S, AFV40D
Software Requirements Yokogawa AAI543-S50 AAI543-S53 AAI543-H50 AAI543-H53 Analog Output Modules
The analog I/O modules run on the control functions of the following FCS.
VP6F1700 Control Function for Field Control Station: for AFV30/AFV40£
Engineering Requirements Yokogawa AAI543-S50 AAI543-S53 AAI543-H50 AAI543-H53 Analog Output Modules
Works on VP6E5100 Standard Builder Function.
