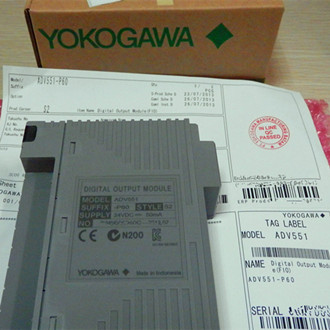

Yokogawa ADV551-P60/D5A00 ADV551-P63 Digital Output Module
GENERAL of Yokogawa ADV551-P60/D5A00 ADV551-P63 Digital Output Module
This GS covers the hardware specifications of the Digital I/O Modules (FIO) that can be installed in the Node Unit
for ESB Bus (ANB10S, ANB10D, ANB11S, ANB11D), the Node Unit for ER Bus (ANR10S, ANR10D) and the Field
Control Unit (AFV30S, AFV30D, AFV40S, AFV40D, AFF50S, AFF50D, AFV10S, AFV10D).
Digital Output Modules of Yokogawa ADV551-P60/D5A00 ADV551-P63 Digital Output Module
The Digital Output Modules output 32-channel or 64-channel transistor contact signals.The ADV551 and ADV561 can be used in dual redundant configuration
Model ADV551 ADV557 ADV561
Number of output channels 32 32 64
Rated applied voltage 24 V DC 24 V DC 24 V DC
Load voltage 24 V DC, 50 mA 24 V DC, 50 mA 24 V DC, 100 mA
External power supply voltage
range 20.4 to 26.4 V DC 20.4 to 26.4 V DC 20.4 to 26.4 V DC
Output ON voltage maximum
value 2 V DC 2 V DC 2 V DC
Leak current maximum value
when output OFF 0.1 mA 0.1 mA 0.1 mA
Output format Current sink Current sink Current sink
Maximum load current (*1) 100 mA/channel, 26.4 V 100 mA/channel, 26.4 V 100 mA/channel, 26.4 V
Withstanding voltage Between output signal and system: 2 kV AC, For 1 minute Between commons: 500 V AC, For 1
minute, common minus (–) side every 16-channel (*2)
Functions
Status output ON/OFF status output function ON/OFF status output function ON/OFF status output function
Pulse width output One-shot pulse width output
function
— One-shot pulse width output
function
Time-proportioning output Time-proportioning ON/OFF — Time-proportioning ON/OFF
Output response time 3 ms or less (for status output)
10 ms or less (for mixed status and pulse outputs)
Pulse width 8 ms to 7200 s
Pulse width resolution 8 ms, but ON/OFF delay of maximum 1 ms is added
Maximum current
consumption
700 mA (5 V DC)
60 mA (external power supply)
550 mA (5 V DC)
60 mA (external power supply)
700 mA (5 V DC)
120 mA (external power supply)
Weight Approx. 0.20 kg Approx. 0.30 kg Approx. 0.30 kg
External connection
Pressure clamp terminal,
Dedicated cable (AKB331), MIL
connector cable
Pressure clamp terminal Dedicated cable (AKB337), MIL
connector cable
MODELS AND SUFFIX CODES of Yokogawa ADV551-P60/D5A00 ADV551-P63 Digital Output Module
Digital Output Module
Description
Model ADV551 Digital Output Module (32-channel, 24 V DC, Isolated)
Suffix
Codes
-P With pulse width output function/time-proportional output function
5 Without status display; with no explosion protection
6 With status display; with no explosion protection
E Without status display; with explosion protection
F With status display; with explosion protection
0 Basic type
3 With ISA Standard G3 option and temperature (-20 to 70 °C) option
Option
Codes
/D5A00 With KS Cable Interface Adapter for 32-channel Digital [Model : ATD5A-00]
/D5S00 With Pressure Clamp Terminal Block for Digital Output [Model : ATD5S-00]
/D5S10 With Pressure Clamp Terminal Block for Digital Output (surge absorber) [Model : ATD5S-10]
/D5D00 With Dual Pressure Clamp Terminal Block for Digital Output [Model : ATD5D-00]
/D5D10 With Dual Pressure Clamp Terminal Block for Digital Output (surge absorber) [Model : ATD5D-10]
/CCC01 With Connector Cover for MIL Cable [Model : ACCC01]
of Yokogawa ADV551-P60/D5A00 ADV551-P63 Digital Output Module
Digital I/O module
ADV151 Digital Input Module (32-channel, 24 V DC, Isolated)
ADV151-P50/D5A00,ADV151-P50/B5S00,ADV151-P50/B5S10,ADV151-P50/B5D00,ADV151-P50/B5D10,ADV151-P50/CCC01
ADV151-P53/D5A00,ADV151-P53/B5S00,ADV151-P53/B5S10,ADV151-P53/B5D00,ADV151-P53/B5D10,ADV151-P53/CCC01
ADV151-P60/D5A00,ADV151-P60/B5S00,ADV151-P60/B5S10,ADV151-P60/B5D00,ADV151-P60/B5D10,ADV151-P60/CCC01
ADV151-P63/D5A00,ADV151-P63/B5S00,ADV151-P63/B5S10,ADV151-P63/B5D00,ADV151-P63/B5D10,ADV151-P63/CCC01
ADV151-PE0/D5A00,ADV151-PE0/B5S00,ADV151-PE0/B5S10,ADV151-PE0/B5D00,ADV151-PE0/B5D10,ADV151-PE0/CCC01
ADV151-PE3/D5A00,ADV151-PE3/B5S00,ADV151-PE3/B5S10,ADV151-PE3/B5D00,ADV151-PE3/B5D10,ADV151-PE3/CCC01
ADV151-PF0/D5A00,ADV151-PF0/B5S00,ADV151-PF0/B5S10,ADV151-PF0/B5D00,ADV151-PF0/B5D10,ADV151-PF0/CCC01
ADV151-PF3/D5A00,ADV151-PF3/B5S00,ADV151-PF3/B5S10,ADV151-PF3/B5D00,ADV151-PF3/B5D10,ADV151-PF3/CCC01
ADV151-E50/D5A00,ADV151-E50/B5S00,ADV151-E50/B5S10,ADV151-E50/B5D00,ADV151-E50/B5D10,ADV151-E50/CCC01
ADV151-E53/D5A00,ADV151-E53/B5S00,ADV151-E53/B5S10,ADV151-E53/B5D00,ADV151-E53/B5D10,ADV151-E53/CCC01
ADV151-E60/D5A00,ADV151-E60/B5S00,ADV151-E60/B5S10,ADV151-E60/B5D00,ADV151-E60/B5D10,ADV151-E60/CCC01
ADV151-E63/D5A00,ADV151-E63/B5S00,ADV151-E63/B5S10,ADV151-E63/B5D00,ADV151-E63/B5D10,ADV151-E63/CCC01
ADV151-EE0/D5A00,ADV151-EE0/B5S00,ADV151-EE0/B5S10,ADV151-EE0/B5D00,ADV151-EE0/B5D10,ADV151-EE0/CCC01
ADV151-EE3/D5A00,ADV151-EE3/B5S00,ADV151-EE3/B5S10,ADV151-EE3/B5D00,ADV151-EE3/B5D10,ADV151-EE3/CCC01
ADV151-EF0/D5A00,ADV151-EF0/B5S00,ADV151-EF0/B5S10,ADV151-EF0/B5D00,ADV151-EF0/B5D10,ADV151-EF0/CCC01
ADV151-EF3/D5A00,ADV151-EF3/B5S00,ADV151-EF3/B5S10,ADV151-EF3/B5D00,ADV151-EF3/B5D10,ADV151-EF3/CCC01
Yokogawa ADV551-P60/D5A00 ADV551-P63 Digital Output Module
ADV141 Digital Input Module (16-channel, 100V - 120 V AC, Isolated)
ADV141-P50/C4S50
ADV141-P53/C4S50
ADV141-PE0/C4S50
ADV141-PE3/C4S50
Yokogawa ADV551-P60/D5A00 ADV551-P63 Digital Output Module
ADV142 Digital Input Module (16-channel, 200 V - 240 V AC, Isolated)
ADV142-P00/C4S60
ADV142-P03/C4S60
Yokogawa ADV551-P60/D5A00 ADV551-P63 Digital Output Module
ADV157 Digital Input Module (32-channel, 24V DC, Pressure Clamp Terminal support only, Isolated)
ADV157-S50
ADV157-S51
ADV157-SE0
ADV157-SE1
ADV161 Digital Input Module (64-channel, 24 V DC, Isolated)
ADV161-P50
ADV161-P51
ADV161-PE0
ADV161-PE1
ADV551 Digital Output Module (32-channel, 24 V DC, Isolated) Yokogawa ADV551-P60/D5A00 ADV551-P63 Digital Output Module
ADV551-P50/D5A00,ADV551-P50/D5S00,ADV551-P50/D5S10,ADV551-P50/D5D00,ADV551-P50/D5D10,ADV551-P50/CCC01
ADV551-P53/D5A00,ADV551-P53/D5S00,ADV551-P53/D5S10,ADV551-P53/D5D00,ADV551-P53/D5D10,ADV551-P53/CCC01
ADV551-P60/D5A00,ADV551-P60/D5S00,ADV551-P60/D5S10,ADV551-P60/D5D00,ADV551-P60/D5D10,ADV551-P60/CCC01
ADV551-P63/D5A00,ADV551-P63/D5S00,ADV551-P63/D5S10,ADV551-P63/D5D00,ADV551-P63/D5D10,ADV551-P63/CCC01
ADV551-PE0/D5A00,ADV551-PE0/D5S00,ADV551-PE0/D5S10,ADV551-PE0/D5D00,ADV551-PE0/D5D10,ADV551-PE0/CCC01
ADV551-PE3/D5A00,ADV551-PE3/D5S00,ADV551-PE3/D5S10,ADV551-PE3/D5D00,ADV551-PE3/D5D10,ADV551-PE3/CCC01
ADV551-PF0/D5A00,ADV551-PF0/D5S00,ADV551-PF0/D5S10,ADV551-PF0/D5D00,ADV551-PF0/D5D10,ADV551-PF0/CCC01
ADV551-PF3/D5A00,ADV551-PF3/D5S00,ADV551-PF3/D5S10,ADV551-PF3/D5D00,ADV551-PF3/D5D10,ADV551-PF3/CCC01
ADR541 Relay Output Module (16-channel, 24 to 110 V DC/100 to 240 V AC, Isolated)
ADR541-P50/C4S70, ADR541-P53/C4S70, ADR541-PE0/C4S70, ADR541-PE3/C4S70
ADV557 Digital Output Module (32-channel, 24 V DC, Pressure Clamp Terminal support only, Isolated)
ADV557-S50
ADV557-S51
ADV557-E50
ADV557-E51
ADV561 Digital Output Module (64-channel, 24 V DC, Isolated) Yokogawa ADV551-P60/D5A00 ADV551-P63 Digital Output Module
ADV561-P50
ADV561-P51
ADV561-E50
ADV561-E51
ADV859 Digital I/O Module for Compatible ST2 (16-channel input/16-channel output, Isolated channels)
ADV859-P00
ADV859-P01
ADV159 Digital Input Module for Compatible ST3 (32-channel, Isolated channels)
ADV159-P00
ADV159-P01
ADV559 Digital Output Module for Compatible ST4 (32-channel output, Isolated channels)
ADV559-P00
ADV559-P01
ADV869 Digital I/O Module for Compatible ST5 (32-channel input/32-channel output, Isolated, Common Minus Side Every 16-channel)
ADV869-P00
ADV869-P01
ADV169 Digital Input Module for Compatible ST6 (64-channel, Isolated, Common Minus Side Every 16-channel)
ADV169-P00
ADV169-P01
ADV569 Digital Output Module for Compatible ST7 (64-channel output, Isolated, Common Minus Side Every 16-channel)
ADV569-P00
ADV569-P01
Yokogawa ADV551-P60/D5A00 ADV551-P63 Digital Output Module
AAR181 AAR181-S00
AAI135 AAI135-S00 AAI135-H00
AAI835 AAI835-S00 AAI835-H00
AAT145 AAT145-S00
AAR145 AAR145-S00
AAP135 AAP135-S00 AAP135-S00/K4A00
AAP149 AAP149-S00
AAP849 AAP849-S00
ADV151 ADV151-P00 ADV151-P00/D5A00 ADV151-P03/D5A00
ADV141 ADV142
ADV551 ADV551-P00/D5A00 ADV551-P00/D5A00D ADV551-P03/D5A00
ADV157 ADV161
Yokogawa ADV551-P60/D5A00 ADV551-P63 Digital Output Module
AAI141-S50/A4S10 ADV151-P03/D5A00 ASI133-S00/SA3D0 AAI543-H03/K4A00 ADV551-P50/D5A00
ADV551-P60/D5A00 AAT141-S50/T4S00 SAI143-S53/A4S00 AAT141-S50/T4S00 AFV10D-S41251 ADV551-P03/D5A00
Yokogawa ADV551-P60/D5A00 ADV551-P63 Digital Output Module
| HHR-11F2G2 | S9400UK | S9185FA | S9971DB | S9581UK | S9185FA |
| ATA4D-00 | ATK4A-00 | ATD5A-00 | AER4D-00 | ATA4S-00 | AET4D-00 |
| S9757UV | S9528VK | S9880UK | S9879UK | SB301 | AER4D-05 |
| ADM52T | ADM52T | ADC32 | ADM52-2 | AMM42 | AMT16M |
| ADV151-P50/D5A00 | ADV151-P60 | SDV541-S53 | ADV561-P00 | ADV161-P00 | ADV159-P00 |
| SDV144-S53 | ATT4S-00 | AMM52 | CP461-50 | ATI3S-00 | ARM55C-000 |
| AMM42T | VF702 | EC401-50 | AMM52T | PW402 | RB401 |
| AAI543-H00 | AAI543-S53 | AAI143-S00 | AAT141-S00 | AAI543-S00 | AAT145-S00 |
| AAV141-S50 | AAR145-S00 | AAR145-S50 | AAR181-S50 | AIP830-001/EIM | ALP121-S01 |
| AEA4D-05 | AEP7D-15 | ALP111-S00 | ADCV01 | ATB5S-00 | AIP502 |
| ADM12 | AMM32T | ADM12 | ADV151-P50 | AAP135-S50 | AAI143-S53 |
| AAI143-H00 | AAI135-S50 | SAI143-S53 | SB401-10 | PW301 | EH1*A |
| PW481-50 | PW482-10 | PW482-50 | SPW481-53 | PW482-10 | PW302 |
| ALR121-S50 | ALR121-S00 | ALF111-S50 | ALR121-S01 | SDV541-S63 | ADV551-P60 |
| AAI543-S50 | AAI543-H50 | AAI543-S03 | AAI841-S50 | AAI835-H50 | ADV169-P00 |
| MX110-VTD-L30 | MX110-UNV-M10 | CP451-50 | F3LC12-1F | AEA4D-00 | AET4D-05 |
| EB501-10 | EB401-10 | SB401-50 | E9766YS | E9766YB | E9766EB |
| AAI143-S50 | AAI143-S03 | AAI143-H50 | AAT145-S50 | AAI135-H50 | ADV551-P50 |
| AAM50 | AAM10 | AAM11 | ADM12C | ADM52C-2 | AAI543-H03 |
| 90032 | 90024 | 90020 | 90012 | 700924 | TX1002 |
| 90011 | 90023 | 90031 | 90013 | 90010 | 245903 |
| BT200 | SR10006-3 | SR10006-2 | SR10004-2/A1 | WT333-H-C2 | CA71 |
| K9142TH | K9142TN | SR20-AP26 | SM60-T1 | SM21-AG4 | SM21-AG6 |
| SC72SN-21-AA | SC72SN-11-AA | SC72SN-31-AA | SC72-21-E-AA | SR20-AP26 | SR20-AP24 |
