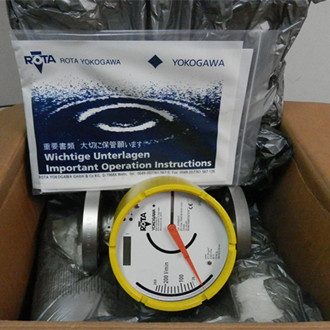

Yokogawa RAMC Rotameter RAMC Variable Area Flowmeter RAMC02-A1SS-63S2-E90424/SD/KS2

At first glance the instrument looks impressive with its all stainless steel design. A closer look reveals a unique patented "float blockage" detection system. Operational safety is of the utmost importance in any flowmeter, and the RAMC is no exception – wetted parts are available in a variety of materials, and intrinsically safe utputs are available as an option.

If you value flexibility in a flowmeter – from the measurement of air to highly aggressive liquids – in situ replacement of the indicator without loss of performance – and the interchangeability of floats – then the RAMC is the right choice for you.

The RAMC combines all the advantages of the variable area principle with robust design, reliable measurement, with or without power, HART® or Profibus PA, culminating in a truly universal flowmeter for gases, liquids and steam applications.

Description of Yokogawa RAMC Rotameter RAMC Variable Area Flowmeter RAMC02-A1SS-63S2-E90424/SD/KS2

The short-tube Rotameter is used for measurement of flow rates of liquids and gases. Its special application is in troubled, opaque or aggressive mediums. The instrument is mounted in a vertical pipeline with flow direction upwards.

Inside the special shaped conicmetal tube, a float is guided concentrically. The position of this float is magnetically transmitted to the indicator. The indicators are exchangeable without influence on the accuracy.

FEATURES of Yokogawa RAMC Rotameter RAMC Variable Area Flowmeter RAMC02-A1SS-63S2-E90424/SD/KS2

• Different process connections like flanges according to EN and ASME

• All wetted parts in stainless steel or PTFE

• Maximum flow 0.025 - 130 m³/h water resp. 0.75 - 1400 m³/h air (20 °C/ 1.013 bar abs)

• Measuring accuracy acc. Directive VDI/VDE 3513 sheet 2(qG=50 %)

• Float damping to avoid float bouncing with gas applications

• Optional heat tracing (with steam or fluid heat carrier)

• Indicator in stainless steel, aluminium, protection class IP66/67

• Local indicator without additional power supply

• Microprocessor controlled transmitter with 24 V, 115 V or 230 V power supply

• Intrinsically safe version (Ex-i): ATEX, IECEx, FM (US/C),NEPSI, PESO, EAC, INMETRO

• Flame proof version (Ex-d): ATEX, IECEx, NEPSI, PESO,KOSHA, EAC, TS

• Dust explosion proof: ATEX, IECEx, NEPSI, PESO, KOSHA

• Ex for non- electrical RAMC: ATEX, EAC

• FMEDA report available for SIL application

• Limit switches, also available as “Fail Safe” version

Characteristics of Yokogawa RAMC Rotameter RAMC Variable Area Flowmeter RAMC02-A1SS-63S2-E90424/SD/KS2

• Flow indication (totalize, actual, percent)

• Indication of different volume- and mass flow units

• Second (manual) calibration storing

• Patented float blocking indication function

• Signal output damping

• Error message indication

• Temperature measurement in the electronic transmitter

• HART5/7-Communication

• Profibus PA-Communication

Specification of Yokogawa RAMC Rotameter RAMC Variable Area Flowmeter RAMC02-A1SS-63S2-E90424/SD/KS2
