Yokogawa UT35A-000-10-00 UT35A UT32A Digital Indicating Controller In Stock
The UT35A and UT32A temperature controllers employ an easy-to-read, 14-segment large color LCD display, along with navigation keys, thus greatly increasing the monitoring and operating capabilities. A ladder sequence function is included as standard. The short depth of the controller helps save instrument panel space. The UT35A/UT32A also support open networks such as Ethernet communication.
Features of Yokogawa UT35A-000-10-00 UT35A UT32A Digital Indicating Controller In Stock
· 4 target setpoints (PID numbers) available as standard
· 3 alarm independent common terminals available as standard
· Ladder sequence programs can be built
· Simple operation
· Up to 8 DOs (combinations available)
· Multiple language operation manual (Japanese, English, German, French, Spanish, Chinese and Korean) available. Please specify the desired language when ordering.
· Detailed code model available to customize specifications best suited to you.
8 Built-in Control Modes Yokogawa UT35A-000-10-00 UT35A UT32A Digital Indicating Controller In Stock
The control mode allows easily configuring settings and making changes with parameters.
· Single-loop control
· Cascade primary-loop control
· Cascade secondary-loop control
· Cascade control
· Loop control for backup
· Loop control with PV switching
· Loop control with PV auto-selector
· Control with PV-hold function
8 Built-in Control Types Yokogawa UT35A-000-10-00 UT35A UT32A Digital Indicating Controller In Stock
· PID control
· ON/OFF control (1 point of hysteresis)
· ON/OFF control (2 points of hysteresis)
· Two-position, two-level control
· Heating/cooling control
· Sample PI control
· Batch PID control
· Feedforward control
Specification of Yokogawa UT35A-000-10-00 UT35A UT32A Digital Indicating Controller In Stock
|
ITEM |
UT35A |
UT32A |
|
|
PV input |
Input type |
1 Universal input (TC, RTD, mV, V, mA) |
|
|
Indication accuracy |
±0.1% of F.S. |
||
|
Control scan period |
|
200 msec |
|
|
PV/SP data display |
|
14-segment, 5 digits, Bar graph LCD display |
|
|
Control outputs (MV) |
Type |
Relay, Voltage Pulse, Current |
|
|
Algorithm |
ON/OFF, PID (Continuous, Time-proportional), Heating/Cooling, Position-proportional |
||
|
Digital inputs |
Number |
2 (Std) 7 (Max) |
2 (Std) 4 (Max) |
|
Type |
SP No.Change, PID No. Change, A/M Change, etc |
||
|
Digital outputs |
Number |
3 (Std) 8 (Max) |
3 (Std) 5 (Max) |
|
Function |
PV High, PV Low, Dev High, etc |
||
|
Current trans input (option) |
Number |
2 |
|
|
Retransmission |
Number |
1 |
|
|
Type |
PV, SP, OUT, etc |
||
|
Remote (aux.) input (option) |
Number |
- |
- |
|
Type |
- |
||
|
Loop power supply (LPS) (option) |
Number |
1 |
|
|
Voltage |
21.6 to 28.0 VDC |
||
|
Communication (option) |
Number |
1 |
1 |
|
Type |
RS-485, Ethernet, PROFIBUS-DP, CC-Link, DeviceNet |
RS-485 |
|
|
Other specifications |
Power supply |
100 to 240 VAC (+10%, -15%) or 24 VAC/DC (+10%, -15%) (option) |
|
|
Power consumption |
Max 18 VA |
Max 15 VA |
|
|
Mass |
Max 0.5 kg |
||

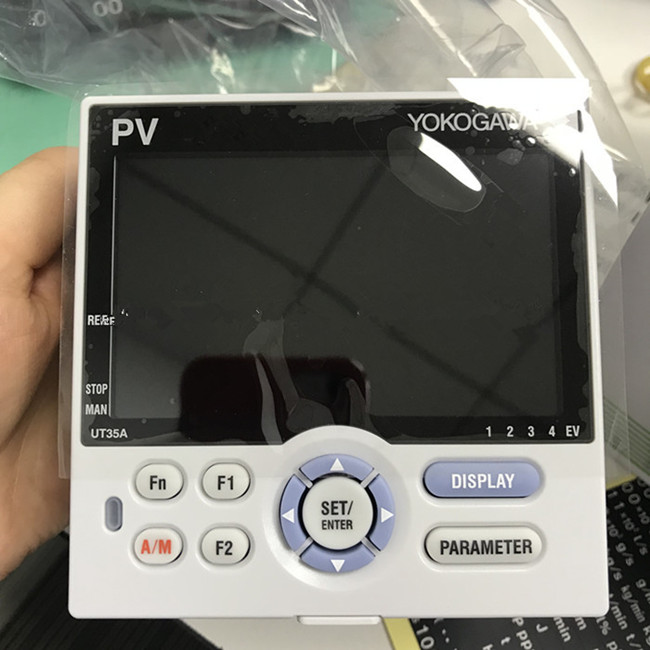

Yokogawa UT35A-000-10-00 UT35A UT32A Digital Indicating Controller In Stock
Ordering Models of Yokogawa UT35A-000-10-00 UT35A UT32A Digital Indicating Controller In Stock
UT35A-000-10-00 UT35A-001-10-00 UT35A-002-10-00 UT35A-003-10-00 UT35A-004-10-00
UT35A-005-10-00 UT35A-010-10-00 UT35A-011-10-00 UT35A-012-10-00 UT35A-013-10-00
UT35A-014-10-00 UT35A-015-10-00 UT35A-020-10-00 UT35A-021-10-00 UT35A-022-10-00
UT35A-023-10-00, UT35A-024-10-00 ,UT35A-025-10-00 UT35A-100-10-00, UT35A-101-10-00
UT35A-102-10-00, UT35A-103-10-00, UT35A-104-10-00, UT35A-105-10-00 UT35A-110-10-00
UT35A-111-10-00, UT35A-112-10-00, UT35A-113-10-00, UT35A-114-10-00, UT35A-115-10-00
UT35A-120-10-00 UT35A-121-10-00 UT35A-122-10-00 UT35A-123-10-00 UT35A-124-10-00
UT35A-125-10-00 UT35A-200-10-00, UT35A-201-10-00, UT35A-202-10-00 ,UT35A-203-10-00,
UT35A-204-10-00, UT35A-205-10-00 UT35A-210-10-00, UT35A-211-10-00, UT35A-212-10-00,
UT35A-213-10-00, UT35A-214-10-00, UT35A-215-10-00 UT35A-220-10-00, UT35A-221-10-00
UT35A-222-10-00, UT35A-223-10-00, UT35A-224-10-00, UT35A-225-10-00 UT35A-000-11-00
UT35A-001-11-00, UT35A-002-11-00, UT35A-003-11-00, UT35A-004-11-00, UT35A-005-11-00
UT35A-010-11-00, UT35A-011-11-00, UT35A-012-11-00, UT35A-013-11-00, UT35A-014-11-00,
UT35A-015-11-00 UT35A-020-11-00, UT35A-021-11-00, UT35A-022-11-00, UT35A-023-11-00,
UT35A-024-11-00, UT35A-025-11-00 UT35A-100-11-00, UT35A-101-11-00, UT35A-102-11-00,
UT35A-103-11-00, UT35A-104-11-00, UT35A-105-11-00 UT35A-110-11-00, UT35A-111-11-00,
UT35A-112-11-00, UT35A-113-11-00, UT35A-114-11-00, UT35A-115-11-00 UT35A-120-11-00,
UT35A-121-11-00, UT35A-122-11-00, UT35A-123-11-00, UT35A-124-11-00, UT35A-125-11-00
UT35A-200-11-00, UT35A-201-11-00, UT35A-202-11-00, UT35A-203-11-00, UT35A-204-11-00,
UT35A-205-11-00 UT35A-210-11-00, UT35A-211-11-00, UT35A-212-11-00, UT35A-213-11-00,
UT35A-214-11-00, UT35A-215-11-00 UT35A-220-11-00, UT35A-221-11-00, UT35A-222-11-00
UT35A-223-11-00, UT35A-224-11-00, UT35A-225-11-00
